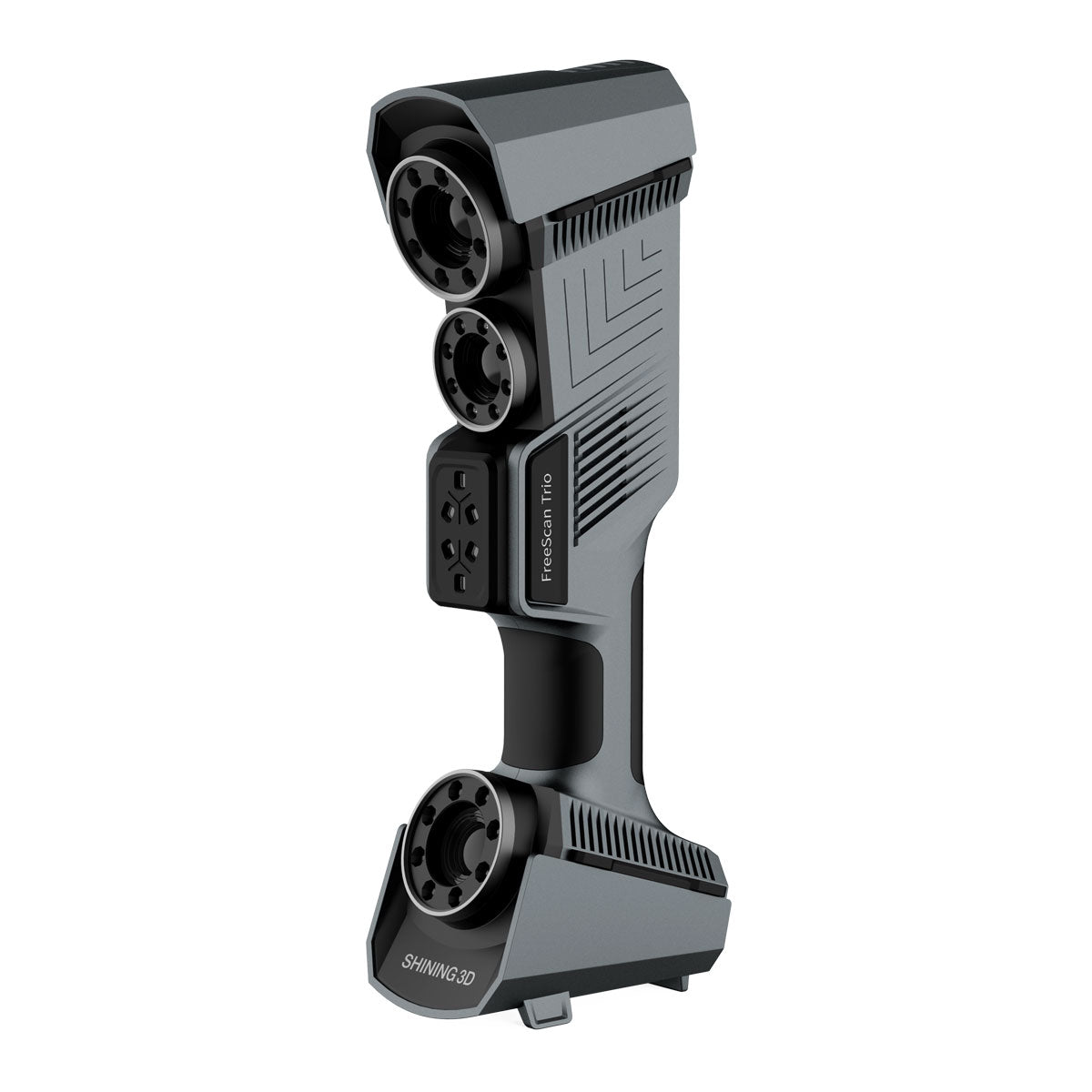

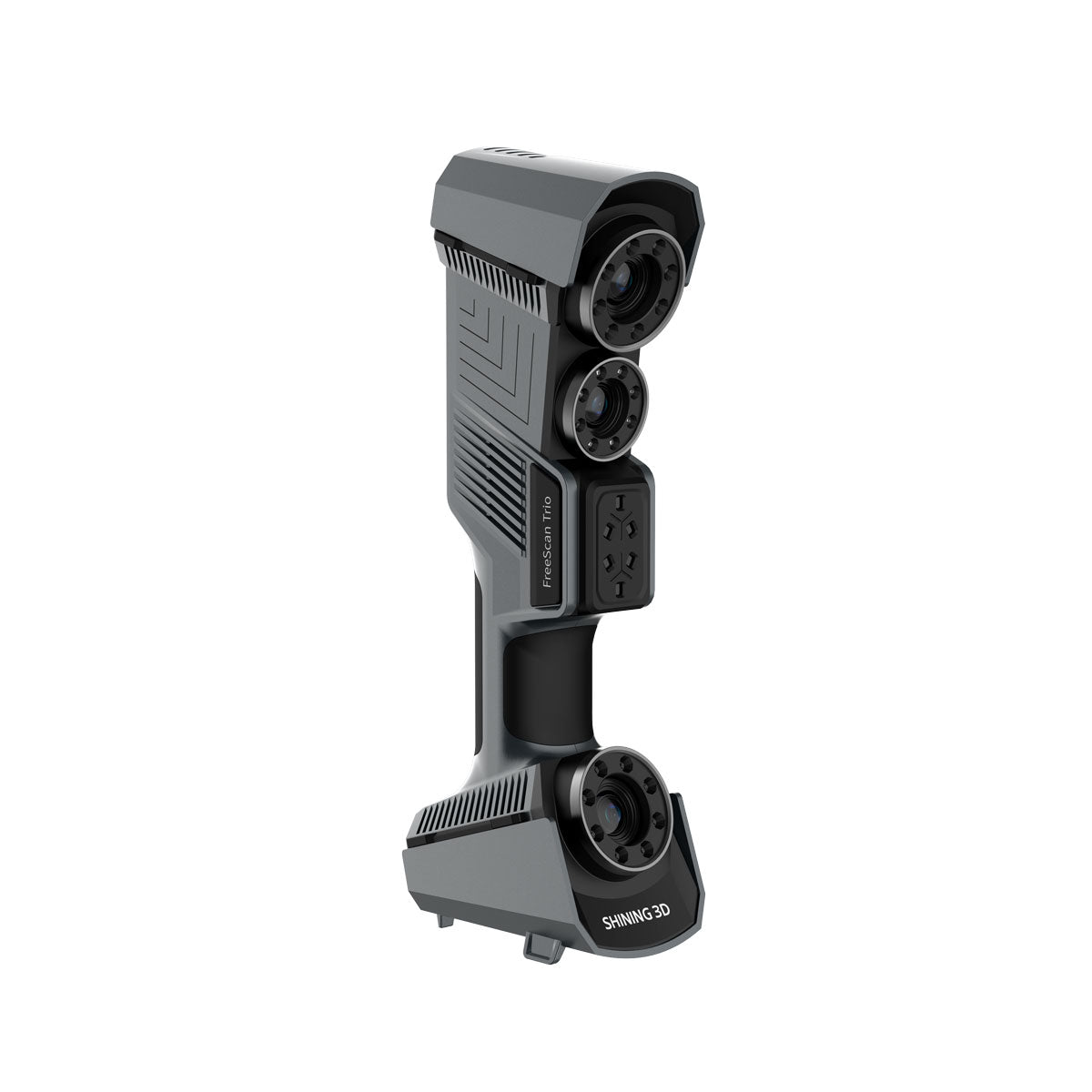

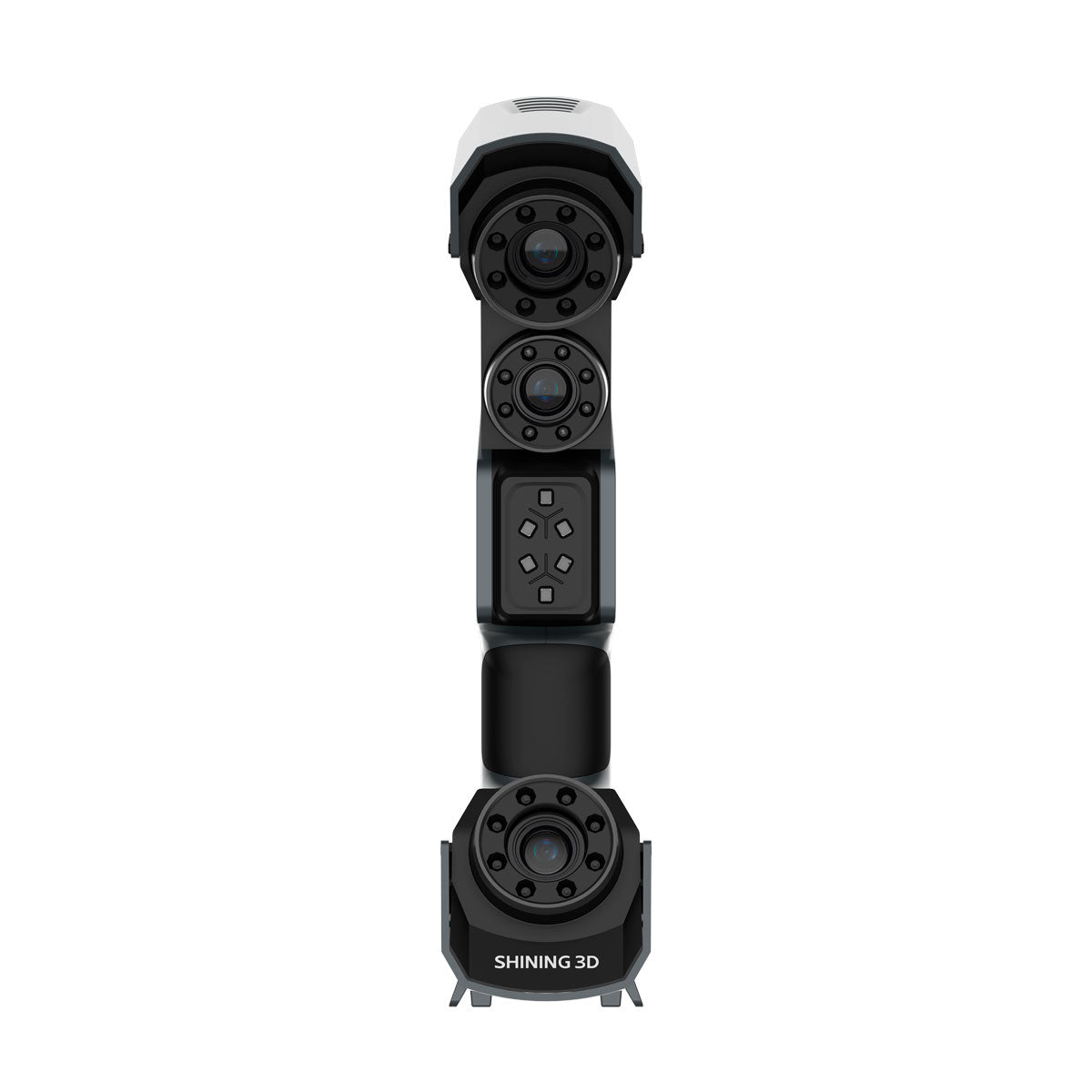

FreeScan Trio
World's First Marker-Free Handheld Laser 3D Scanner
- Accuracy of 0.02 mm with markers
- Speed up to 3,010,000 points/s
- Three 5 megapixel cameras
- 4 scanning modes and built-in photogrammetry
Innovation Meets Every Inspection
FreeScan Trio is the industry's first marker-free handheld 3D scanner that owns the unique innovative techologies to address a wide range of inspection tasks.
Speed and Efficiency Redefined
The FreeScan Trio redefines speed and efficiency with its 98 laser lines that enable marker-free scanning. It can deliver up to 3,010,000 points per second. Less preparation, more efficiency.
The Power of Three 5MP Cameras
With three industrial cameras, each wielding 5MP, the FreeScan Trio brings out the most elaborate details and high-quality 3D data.
Certified and Guaranteed Results
Under the scan modes with markers, the FreeScan Trio consistently provides high-precision scanning results with an accuracy of 0.02 mm.
Quick On-Site Inspection
Simplify operations and enhance fast quality check for various on-site inspection tasks.
Meet the FreeScan Trio Version 2.1
Intelligent Self-Positioning Technology
- No Markers Scan Mode
FreeScan Trio introduces advanced intelligent self-positioning technology to streamline the scanning process. With 98 laser lines, it eliminates the need for markers, and achieves a fast scan speed of up to 3,010,000 points per second.
- 3 Industrial 5MP Cameras
With three industrial cameras, each wielding 5MP, FreeScan Trio brings out the most elaborate details and high-quality 3D data.
Perfect High Details Capture
FreeScan Trio delivers exceptional high-details capture, ensuring intricate data acquisition with or without markers.
Deep Hole Mode
Both 26 and single laser lines of FreeScan Trio are capable of scanning holes, deep pockets and fin walls, thanks to its optimized camera angles and advanced scanning modes.
Video Photogrammetry (VPG)
FreeScan Trio features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.
Metrology Kit
Magnetic marker balls for fast setup and easy positioning, Metrology Kit is perfect for handheld laser 3D scanners with smooth scanning workflows.
Our Support Coverage
At SHINING 3D, we don’t just provide devices – we deliver customized solutions, global support, and a commitment to your success. From intuitive tools to calibrated accuracy, we’re here to empower your work.
What You Can Achieve
Discover the ways in which integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.
Automotive
With high scanning speed, fluency, and accuracy, the FreeScan Trio can significantly reduce the number of iterations in your process. It is an ideal choice for scanning vehicle bodies for surface deviation analysis and detecting the accuracy of sheet metal holes.
Aerospace
With high scanning speed, fluency, and accuracy, the FreeScan Trio can significantly enhance scanning efficiency without sacrificing accuracy. Especially with its built-in photogrammetry, it can elevate volumetric accuracy for large plane engines, aircraft fuselages, and other large parts.
Energy, Heavy Industry & Public Utilities
The metrology-grade camera, built-in photogrammetry, and good portability allow the scanner to accurately capture data both indoors and outdoors. It excels at obtaining precise data for large objects such as water turbines and petroleum drill bits, facilitating deformation and damage detection.
Engineering Machinery & Other Transportation
Equipped with three laser line modes, good portability, and metrology-grade accuracy, the FreeScan Trio allows you to scan efficiently and accurately both indoors and outdoors. It is ideal for scanning hull accessories, and tracks for rail transit, as well as for inspection and reverse engineering.
FreeScan Software
Intuitive & Powerful
Flexible Resolution
Ability to change the resolution according to your need, without restarting the project
Real-Time display of Mesh Data
Streamlined software displays mesh data in real time, enhancing visual quality and saving time on the meshing later.
Data Quality Visualization
Users can monitor scanning distance through laser line color or the LED indicator, and assess data quality with the real-time mesh indicator.
Customised Scanning Template
Save time and ensure measurement consistency by using customising scanning settings. No need to set parameters manually.
Technical Specifications
| High-speed Scanning | 26 laser lines | Detailed Scan | 7 parallel laser lines |
|---|---|---|---|
| Deep Hole Scan | 26 / single lines | No Marker Scan | 98 laser lines |
| Large parts | Photogrammetry mode, no coded markers required | Accuracy | 0.02 mm |
| Volumetric Accuracy | 0.02 + 0.015 mm/m (with photogrammetry) | Scan Speed | Up to 3,010,000 points/s |
| Max. FOV | 650 x 580 mm | Point Distance | 0.01 ~ 3 mm |
| Certifications | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX | Accuracy Certification | VDl/VDE 2634 Part 3 (ISO 17025 certificated lab) |
