OptimScan Q12
High-Precision 3D Inspection Scanner
- 4 × 12.3 MP Cameras
- Dual Scan Range
- Monocular-Stereo Fusion (MSF)
- Multiple Exposure

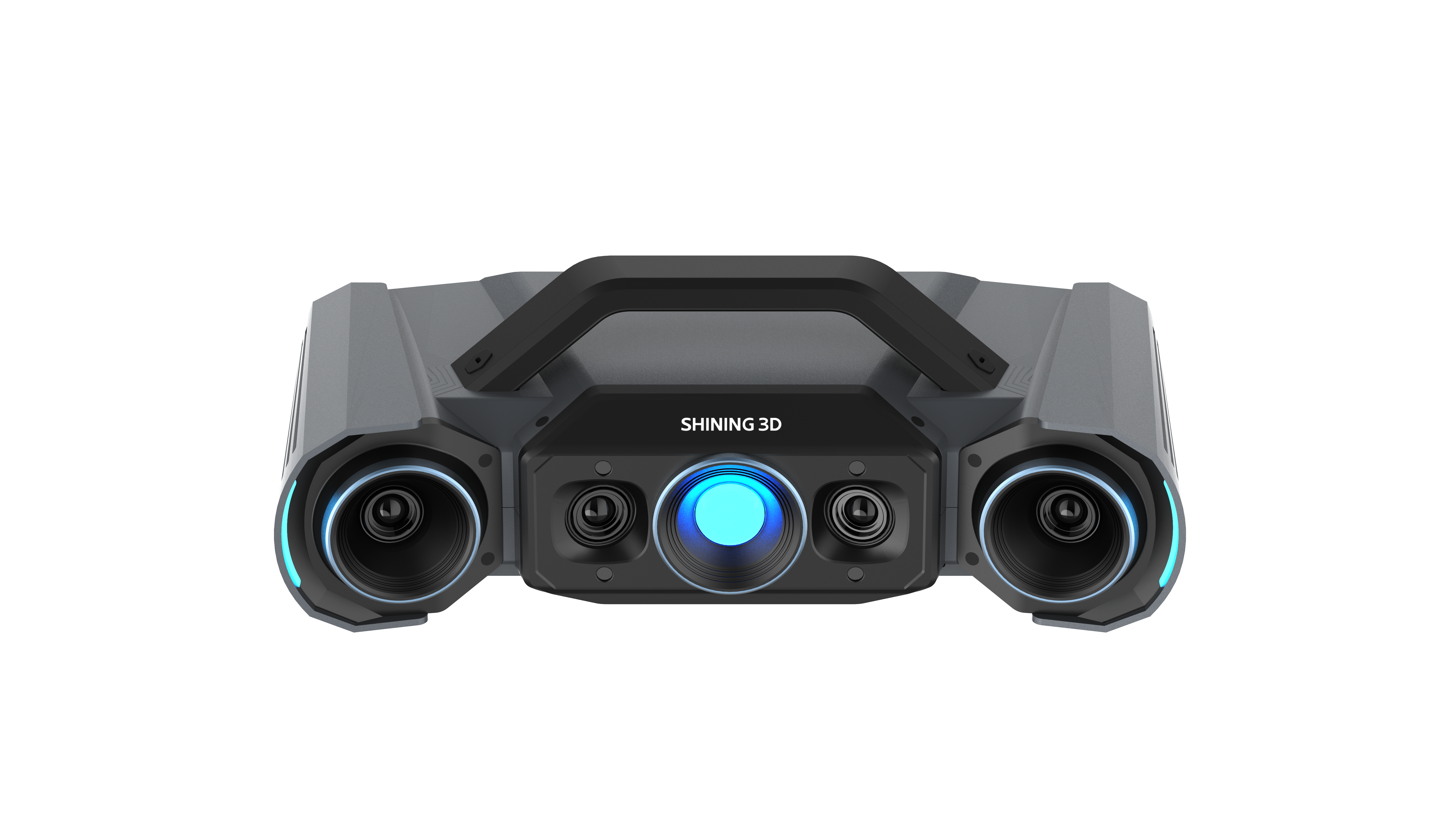

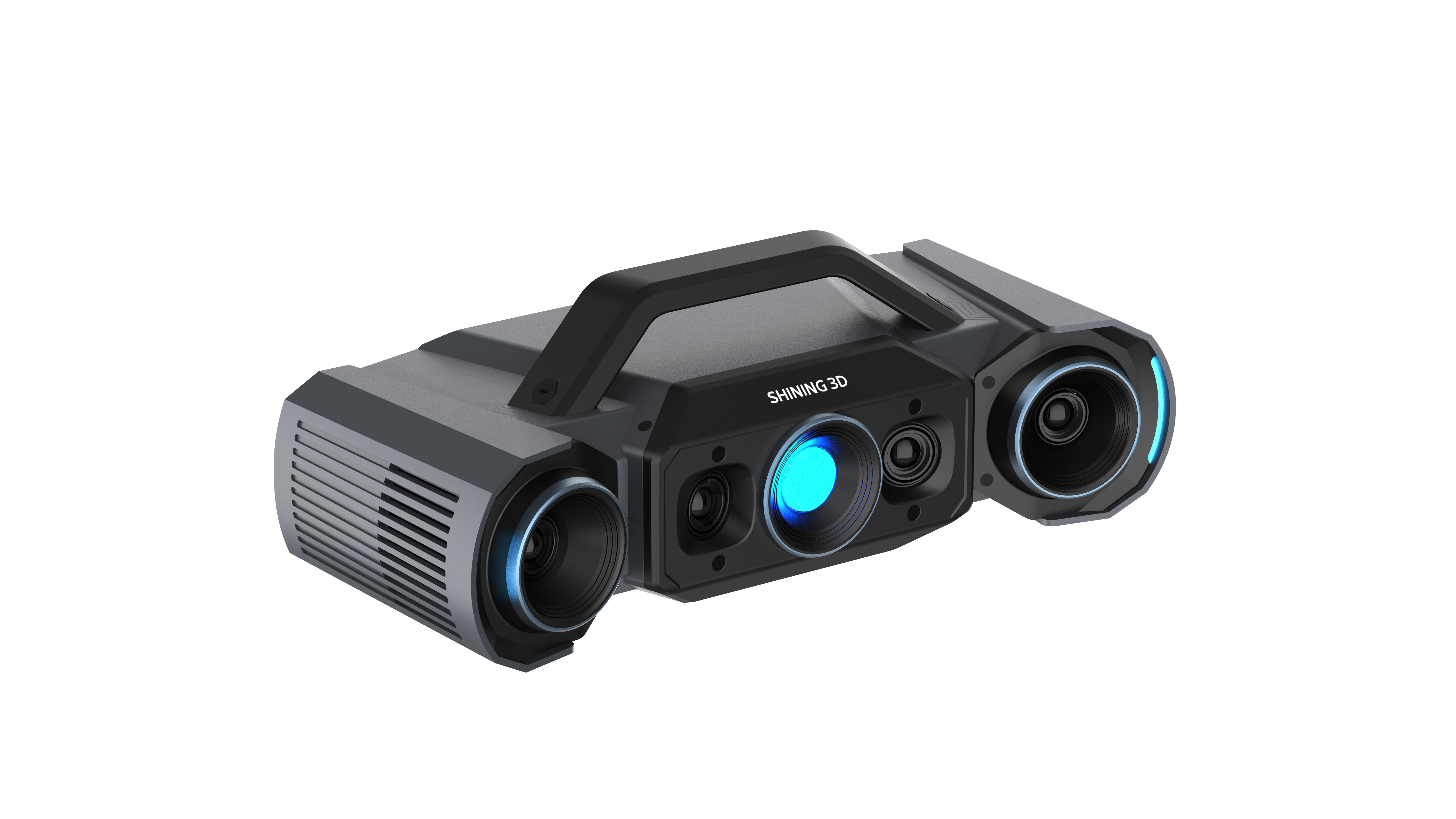

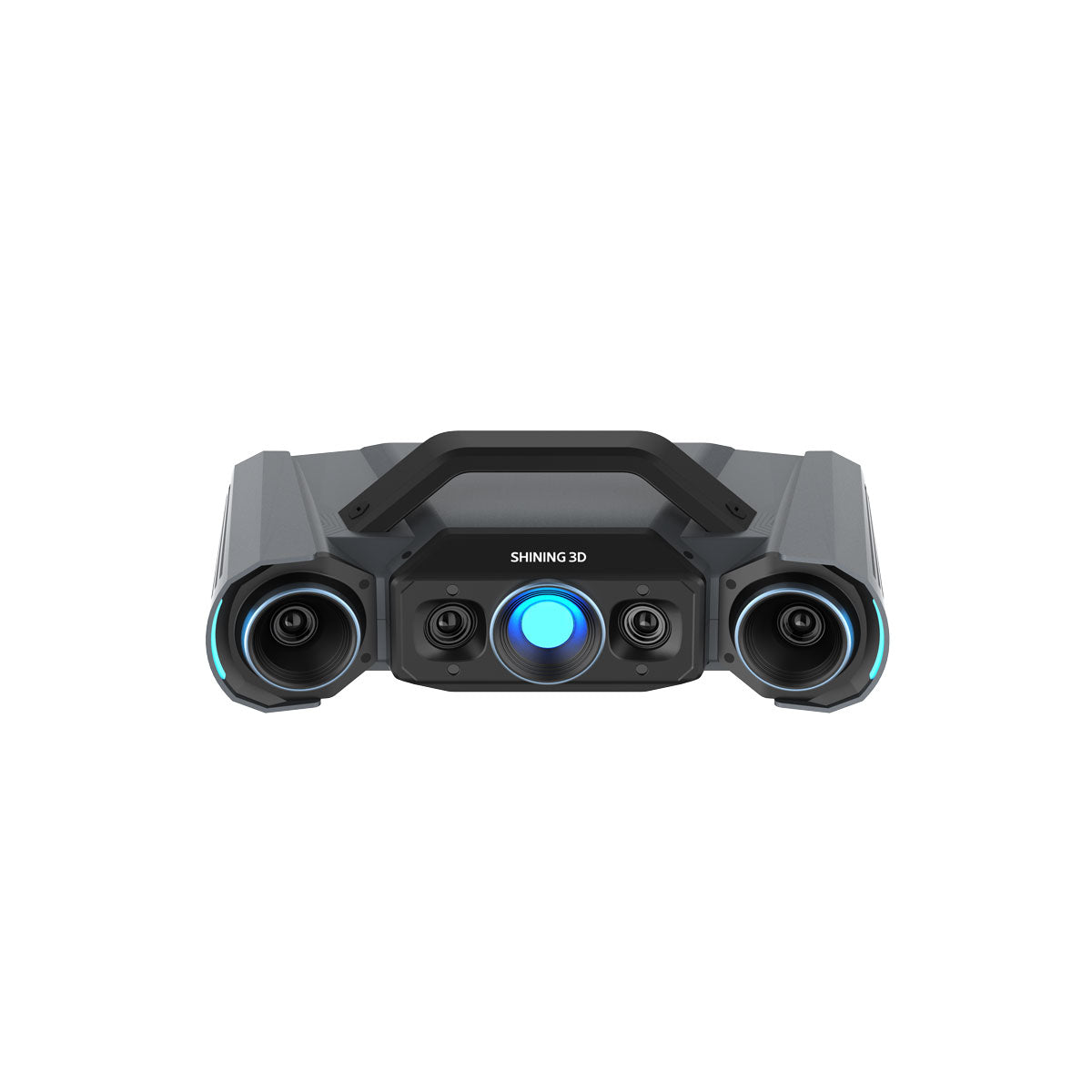

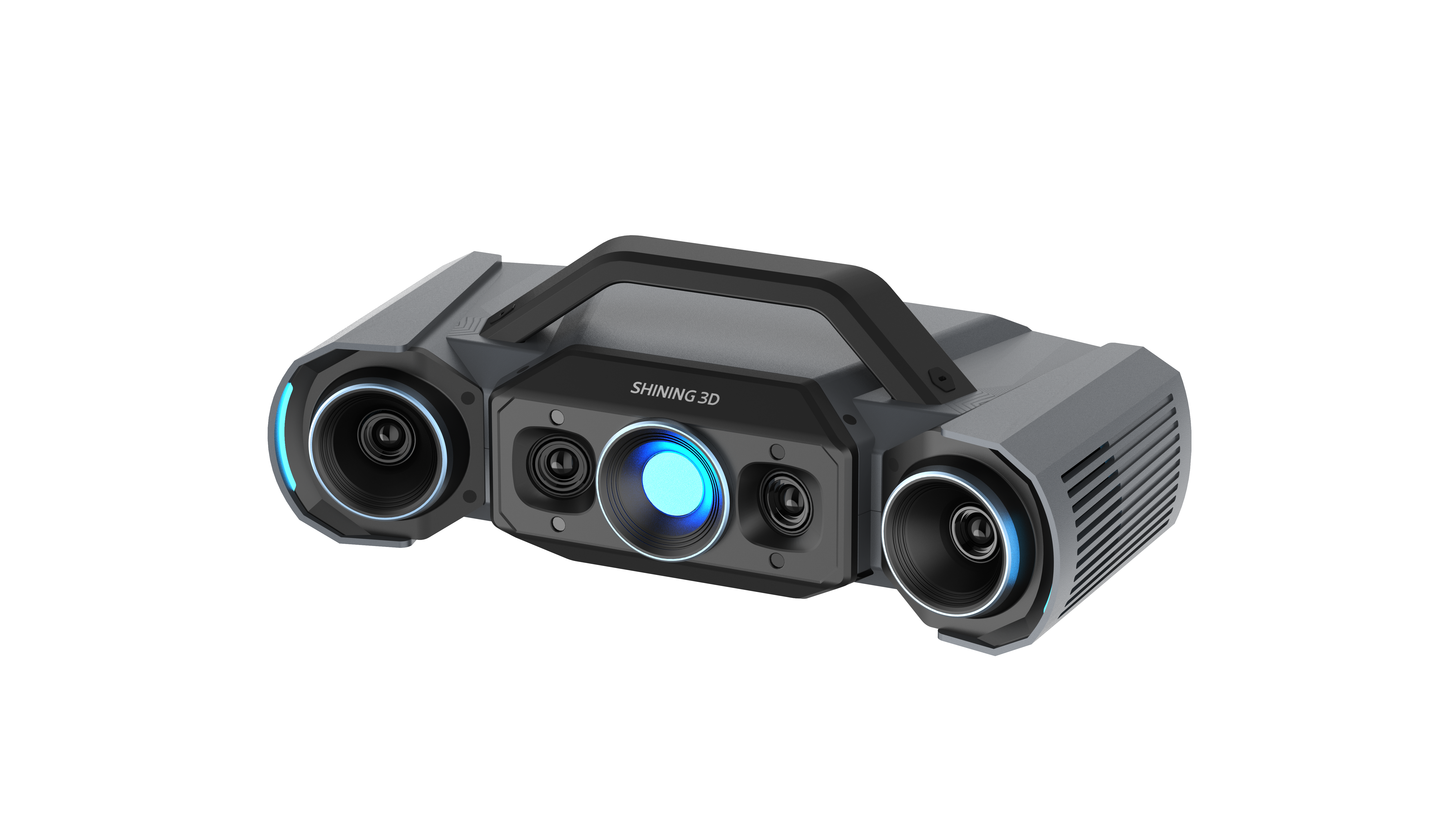

Meet the OptimScan Q12
Key Features
Reliable High Performance
OptimScan Q12, equipped with 4 x 12.3 megapixel cameras, accurately captures geometrically detailed features on an object's surface.
Combined with powerful hardware modules and advanced 3D reconstruction algorithms, it delivers an impressive accuracy of up to 0.005 mm, ensuring stable repeatability.
Dual Scan Range, Easy to Operate
The OptimScan Q12 features two scan ranges that can be switched with a single click, eliminating manual adjustment of aperture and focal length.
- Large range: 430 × 300 mm
- Small range: 160 ×110 mm
Scanned data from different ranges can be seamlessly fused in the software, ensuring both efficiency and detail.
Monocular-Stereo Fusion (MSF)
The monocular-stereo fusion function can effectively increase data coverage and improve the integrity of the scanned data, such as the common turning corners and joints of industrial parts.
Multiple Exposure, Faster Scanning
Powered by a built-in dual-chip computing module, OptimScan Q12 delivers fast image acquisition and data processing. Each shot less than 1 second, capturing an impressive 12 million points with exceptional precision.
To further streamline the workflow, Q12 offers multiple exposure modes—including intelligent automatic exposure—dramatically reducing scanning time while ensuring optimal results across diverse surface conditions.
Versatile and Highly Adaptable

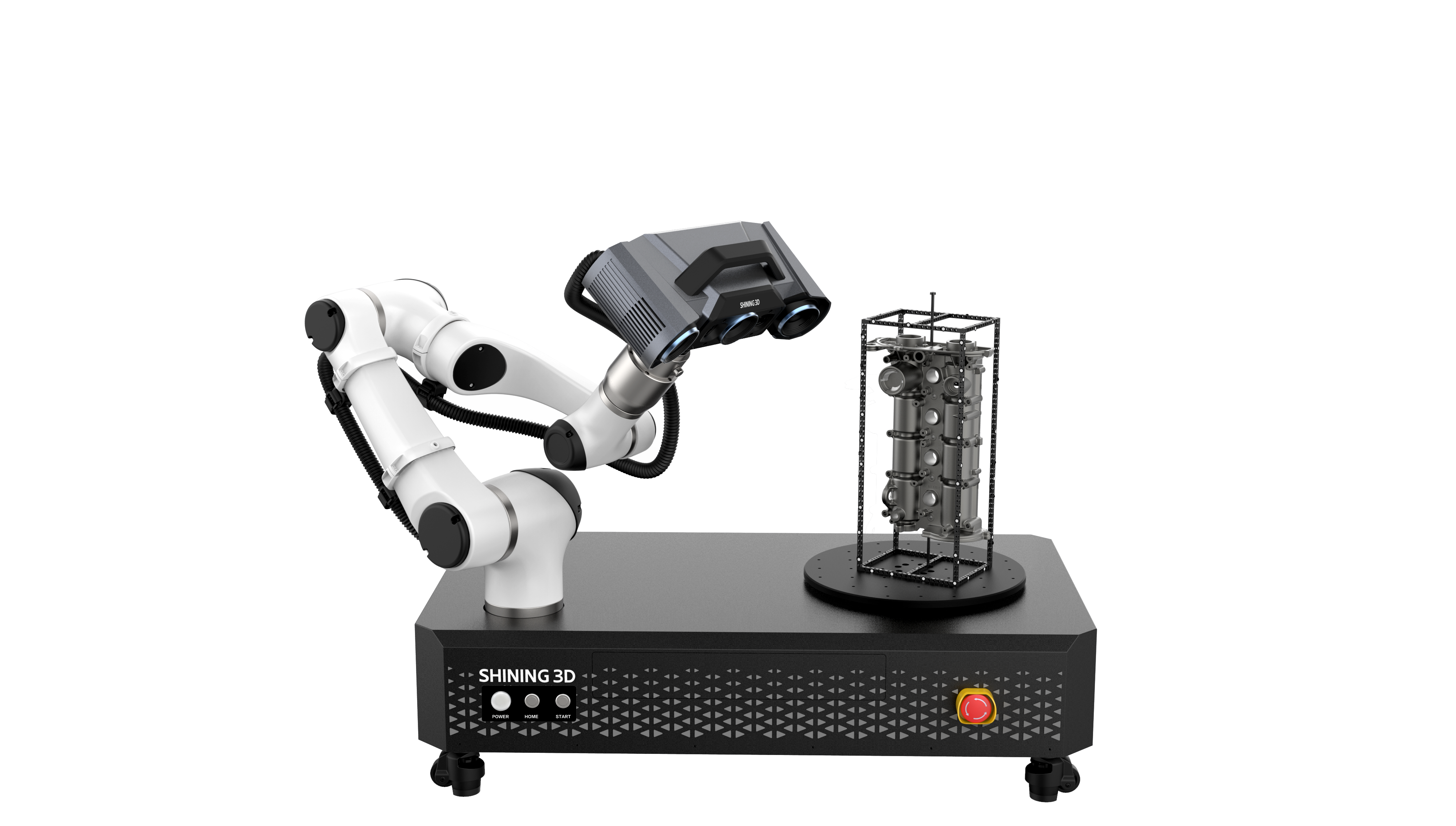

OptimScan Q12 is compact and easy to carry, offering flexible manual scanning. For semi-automated operation, it pairs with a fixed tripod and an automatic turntable with up to 20 kg load, providing increased efficiency and consistency in scanning. In fully automated mode, it integrates with a robot for precise, repetitive inspection tasks.
Automated Inspection Solution
OptimScan Q12 can seamlessly integrates with intelligent 3D inspection system, enabling fully automated workflow from scanning to report generation.
Workflow
- Robot Path Setup
- Automated 3D Scanning
- Automated Data Analysis
- Automated Report Generation
What You Can Achieve
Discover the ways in which integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.
Component Dimension Inspection (GD&T)
Application Scenarios: Precision machined parts such as engine blocks, transmission housings, turbine blades, and braking system components. Function: Rapid acquisition of high-density point cloud data for geometric tolerance analysis (e.g., flatness, roundness, position) by comparing with CAD models. Detects machining errors (e.g., burrs, deformation) to ensure compliance with industry standards.
Stamped Parts and Sheet Metal Quality Control
Application Scenarios: Injection molds, die-casting molds. Function: Scan worn molds and perform reverse engineering to generate 3D models for repair or remanufacturing guidance. Compare data from old and new molds to predict lifecycle and reduce downtime costs.
Mold Development and Repair
With a 5MP-metrology grade camera and blue LED phase shift projector, the OptimScan 5M Plus gives you the highest accuracy and detail, a great choice for quality inspection of electronic parts like mobile phone mold, back cover and panel.
Automated In-Line Inspection (Integrated with Robots)
Application Scenarios: Critical production line stations. Function: Integration with robotic arms enables fully automated scanning. Real-time inspection reports are generated to monitor production trends and provide early deviation warnings.
OptimScan Software
No subscriptions, no hidden fees. Your OptimScan-5M Plus comes with access to our powerful and continuously updated software. Scan as much as you want, all year long, with no hidden fees or extra costs.
Step-by-step Guidance
OptimScan Software will guide you through the 3D scanning process, from calibration to 3D scanning and data editing.
AI Data Cleanup
OptimScan software is equipped with intelligent algorithms that can process and optimize scanning data more efficiently, and output more ideal results.
Adjustable Resolution
Unleash the full potential of the 5M Plus scanner, equipped with three sets of high-resolution industrial lenses. Paired with OptimScan software, 5M Plus allows for scans of varying precision levels, catering to diverse needs.
Swift Operation
Improve work efficiency with the rapid scanning speed of OptimScan-5M Plus scanner, which completes a single scan in less than 1.5 seconds, allowing for seamless workflow optimisation.
Technical Specifications
| Scan Range | Large range: 430 × 300 mm, Small range: 160 × 110 mm | Accuracy | Large range: 0.015 mm, Small range: 0.005 mm |
|---|---|---|---|
| Point Distance | Large range: 0.1 mm, Small range: 0.04 mm | Working Distance | Large range: 590 mm, Small range: 210 mm |
| Depth of field | Large range: 300 mm, Small range: 60 mm | Resolution | 4 × 12.3MP |
| Light Source | Blue LED | Scanner Weight | OptimScan Q12: 3.5 kg |
| Dimensions | 366 × 162 × 132 mm | Certifications | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX |
| Acceptance test | VDl/VDE 2634 Part2 (certified in ISO 17025 certificated accuracy lab) | ||
