UltiMaker S6 3D Printer
£5,880.00 Inc VAT
£4,900.00 Exc VAT
Essential Accessories
Request a Quote
Call our expert advisors to get a tailored solution on 01257 228411 or add this product for a personalised quote
The S5's versatility, enhanced with S8-level speed and accessibility.
Key features
Composite-ready dual extrusion
330 x 240 x 300 mm build volume
Award-winning touchscreen UI
Click and print with the most advanced materials
Blazing Productivity.
The UltiMaker Cheetah motion planner
Unlock new levels of efficiency with the new UltiMaker Cheetah motion planner, redesigned high flor print cores, built in accelerometer, new feeder system and improved firmware
Up to
500 mm/s
speed
50 000 mm/s2
acceleration
while also improving the quality of the print to 0.15mm ± 0.15%.
Digital Factory
The only 3D printing software you will ever need
Digital Factory is designed to streamline every step of your 3D printing workflow, from slicing, to file management and even maintenance. Scalable for any team or enterprise, Digital Factory makes managing your 3D printing projects easier, faster, and more collaborative.
Collaborate
Create
Innovate
Join the industry leaders who choose UltiMaker
High flow print cores
The new AA+ and CC+ print cores, exclusive the the UltiMaker S8 have a new quad-chamber design that allows for 2.5x more flow and also help with regulating the pressure in the print head for cleaner prints.
Optional flexible build plate
Skip using glue and remove parts effortlessly with the PEI-coated flexible build plate. Its patent-pending design uses 25 magnets and 4 pins for perfect alignment – reducing the time spent using the S8 and increasing productivity.
Cura integration
Access the UltiMaker Cura features that speed up your workflow and increase print success – like intent profiles, easy remote printing, and more.
Updated feeder system
New hardened feeder module design inherited from Factor 4 for improved grip and better material control at high speeds.
Dual high flow print cores
The dual extrusion design works together with software and firmware features to allow you to combine any 2 materials no matter how different they are, which low material waste and high reliability.
Optional EPA filter
Independently tested to remove up to 95% of ultrafine particles to increase air quality peace of mind. The fully enclosed build chamber also boosts print quality.
Featured Accessories and Materials
UltiMaker Nylon CF slide
Engineered for industrial applications where tribological performance is needed, Nylon CF Slide is a Nylon 612 CF copolymer offering wear resistance, temperature stability up to 180°C, and PFAS-free performance.

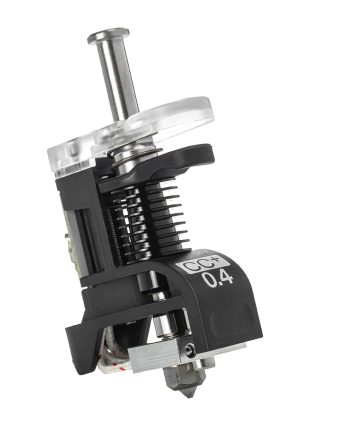

UltiMaker AA+ and CC+ print cores
The new AA+ and CC+ print cores, exclusive the the UltiMaker S8 have a new quad-chamber design that allows for 2.5x more flow and also help with regulating the pressure in the print head for cleaner prints.
Technical Specifications
Printer and Printing Properties
| Technology | Fused deposition modeling (FDM) |
|---|---|
| Print head | Dual-extrusion print head with a unique auto nozzle-lifting system, flood detection and inductive probing |
| Feeder type | Dual gripper feeder with tension adjustment, release functionality and filament feed-rate control |
| Motion planner | Smooth, precise 3D printing with UltiMaker Cheetah. The world's first and only jerk limited motion planner, with third order continuous, smooth motion, and corner blending algorithm |
| Filament diameter | 2.85 mm |
| Compatible print cores | AA+ 0.4 (included), CC+ 0.4, BB 0.4, 0.8 and DD 0.4 (sold separately) *Legacy AA and CC print cores can be used in combination with pre-sliced print jobs. |
| Nozzle temperature | Up to 300°C (644 °F) |
| Dimensional accuracy | ± 0.15 mm ± 0.15% feature nominal length* *Typical accuracy based on selected geometries, materials, and randomly selected machines |
| Build plate | Heated flexible PEI build plate (Up to 120 °C (248 °F)) or heated glass build plate (20 - 140 °C) |
| Build volume (XYZ) | 330 × 240 × 300 mm (~13 × 9.4 × 11.8 in) |
| Build volume temperature | Enclosed build volume < 50 °C (122 °F) open-loop temperature control |
| Layer resolution | 60 - 400 microns (depending on the print core nozzle size and print profile) |
| Extrusion flow | Up to 35 mm3/s |
| XY speed, acceleration, jerk | Up to 500 mm/s, up to 50.000 mm/s2, up to 100.000.000 mm/s3 |
| Material handling | Dual spool holder with NFC recognition |
| Operating sound | < 50 dBA |
| Display | Fast responsive color touchscreen |
| Monitoring | HD camera |
| System on module | ARM cortex quadcore at 1.8 GHz |
| Real-time controller | 600 MHz Arm-cortex M7 |
| Connectivity | Wi-Fi 2.4 & 5 GHz: IEEE 802.11a/b/g/n/ac. LAN: Gigabit Ethernet. USB: 2.0 |
Physical Dimensions
| Dimensions | 495 × 585 × 780 mm (~19.5 × 23 × 30.7 in) (inc. spool holder) |
|---|---|
| Net Weight | 30 kg (66 lbs) |
Ambient Conditions
| Operating Temperature | 15 - 32 °C (59 - 90 °F), 10 - 90 % RH non-condensing |
|---|---|
| Non-operating Temperature | 0 - 32 °C (32 - 90 °F), 10 - 90 % RH non-condensing |
Software
| Print Preparation | UltiMaker Cura 5.10.1 or newer Cura Cloud (no installation required) |
|---|---|
| Printer Management | UltiMaker Digital Factory |
| Supported OS | Windows, MacOS, Linux |
Warranty
| Warranty Period | 12 Months |
|---|
